Description
|
Product Name
|

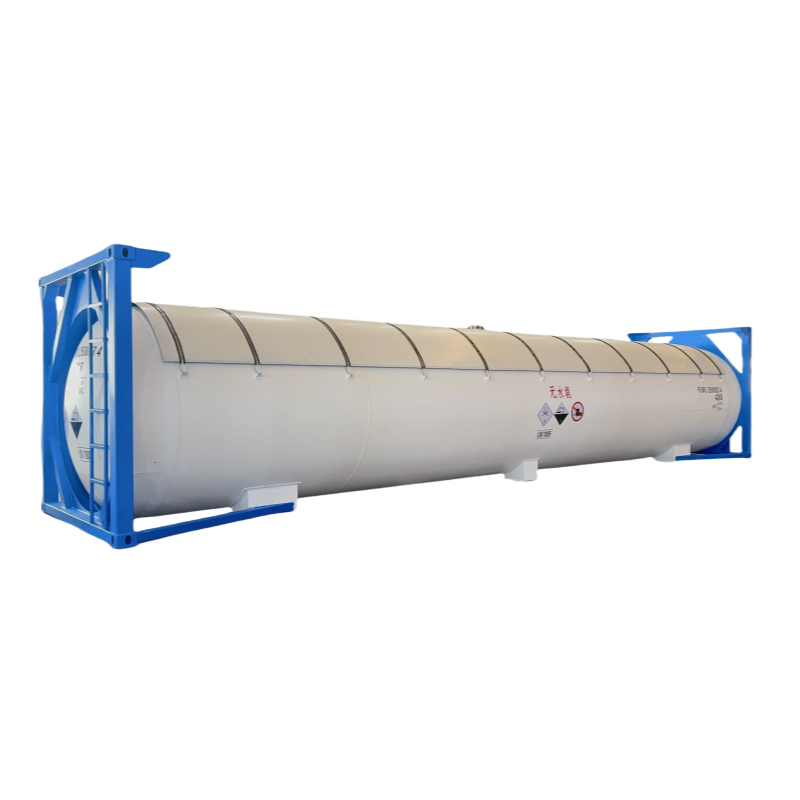

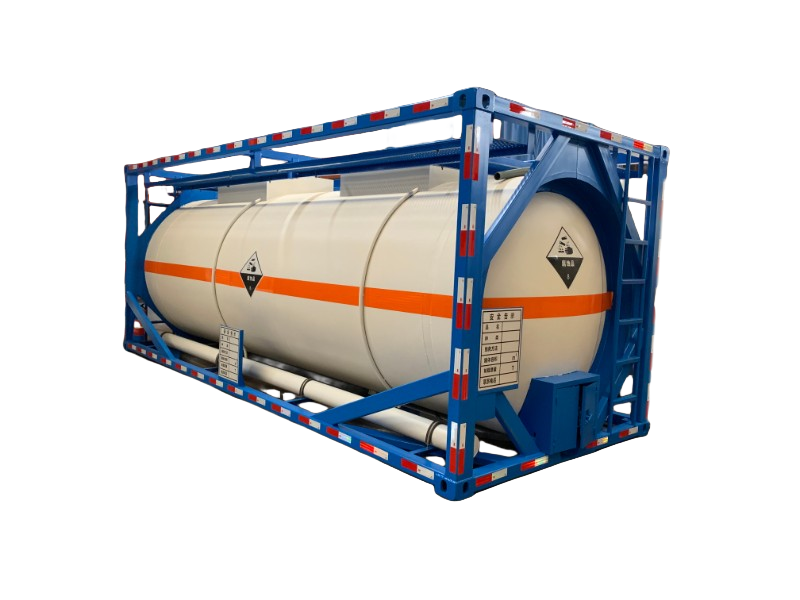

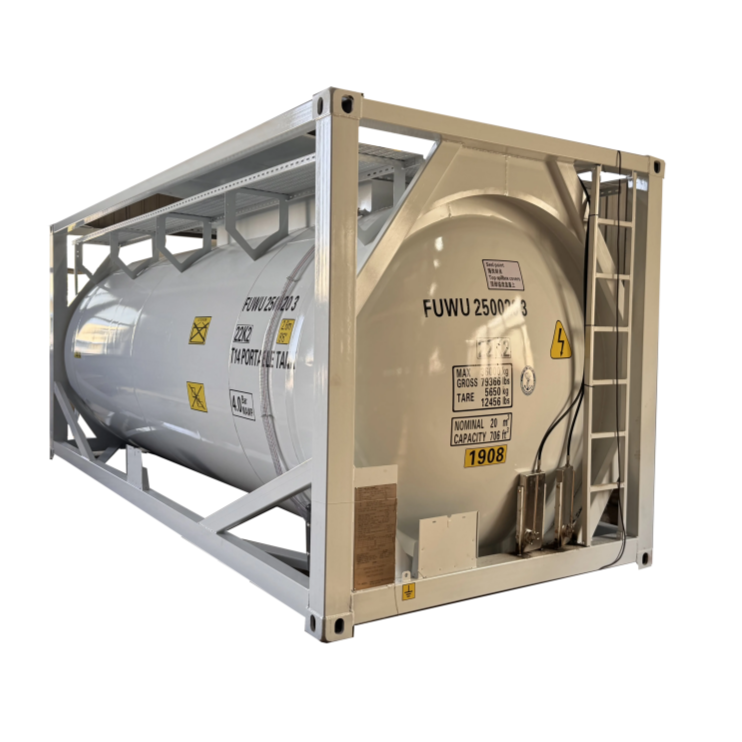

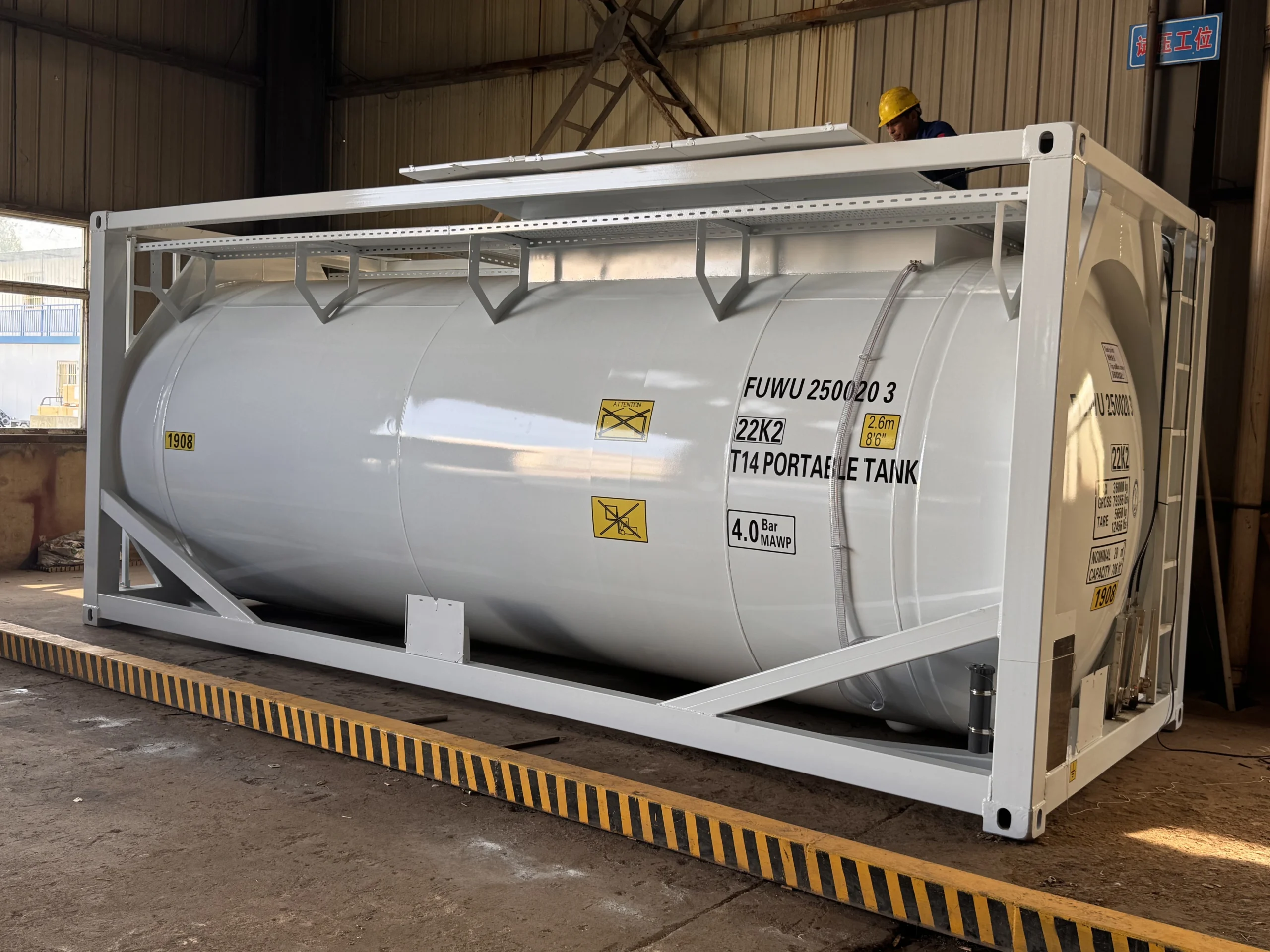

20/30/40ft Steel-Lined Plastic Tank Containers
|
|
Capacity(m³)
|
17.5-42
|
|
Model
|
T14/T4/T7/T11/T14
|
|
Medium
|
Various Corrosive Hazardous Liquids
|
|
Dimensions (L x W x H)(mm)
|
6058*2438*2591
9125*2438*2591 12192*2438*2591 |
|
Tare Weight(KG)
|
5500
6300 13500 |
|
Shell Material
|
Q235B
Q345R S31603 |
|
Head Material
|
Q235B
Q345R S31603 |
|
Non-destructive Examination
|
Optional
|
|
Design Pressure(Mpa)
|
Atmospheric Pressure
|
|
Design Temperature
|
-40℃~55℃
|
|
In-tank Corrosion Protection
|
PE Lining16mm
PTFE Lining 3mm |
|
Insulation
|
Optional
|
|
Accessories
|
Pressure Relief Valve
Vacuum Valve |
|
Manufacturing Compliance
|
GB/T 18564
|
