ISO Tank Container
The 20-foot ISO framework type tank container is applicable to Intermodal transportation. Marine, highway, and railroad transportation. With its overall dimensions conforming to the ISO standards, the tank container has a rating for as high as 9 high stacking loaded. Various components such as valves, safety accessories, heating, cooling components, insulation, walkway, and ladders can be configured according to specific client needs and product requirements to store and transport chemicals globally.
We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated,insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, food-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
FEATURES AT A GLANCE
Left elevation
Custom Logo
Right elevation
PRODUCT SPECIFICATIONS
|
1.0 General
|
|
|
Type of product
|
Intermodal ISO Container UN T75
|
|
Medium
|
LO2 /LN2 /LAr/LCO2 /LNG/ LC2H4/ LC2H6
|
|
MAWP.
|
22 bar
|
|
Water Capacity
|
21,100 Liters
|
|
Filling ratio
|
95%/90%/80%
|
|
Tare weight
|
8,700kg(f3%)
|
|
Load weight
|
27,300 kg
|
|
Maximum gross weight
|
36,000 kg
|
|
Stacking
|
192,000 kg
|
|
Design code
|
ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
|
|
Approvals
|
CCC, CSC
|
|
Approval and inspectionorg
|
Lloyd’s Register
|
|
2.0 Inner vessel
|
|
|
Design code
|
ASME SECT.Đ DIV.1 with U stamp(Mandatory Appendix 44)
|
|
Material
|
Stainless steel(SA240 304N)
|
|
Design temperature
|
50°C
|
|
MDMT
|
-196°C
|
|
Baffles
|
Two transverse baffles
|
|
Surface treatment
|
Pickling
|
|
3.0 Out jacket
|
|
|
Material
|
Carbon steel(Q345R)/Stainless steel(S30408)
|
|
Design temperature
|
50°C
|
|
MDMT
|
40°C
|
|
Surface treatment
|
Shot blast to SA 21/2
|
|
4.0 Insulation
|
|
|
Type of insulation
|
Vacuum with multi-layer super insulation
|
|
Vacuum
|
≤0.1Pa( Warm)
|
|
Net evaporation rate
|
0.34% /d ( LN2 ) (ambient conditions:100kPa and 15°C)
|
|
Tank Capacity
|
Approval
|
Products:
|
|
20000-21900Liter
|
· UN Portable tank (T75) IMDG
· ADR/RID · US DOT / EN Standard · CSC Safety Approval |
· Liquid Nitrogen (LIN)
· Liquid Oxygen (LOX) · Liquid Argon (LAR) · Liquid Carbon Dioxide (LCO2) · Liquid Nitrous Oxide (LN2O) · Liquefied Natural Gas (LNG) · Liquid Ethylene (C2H4) · Others |
PRODUCT CONFIGURATION
Safety Valve
Hose
Pressure Gauge

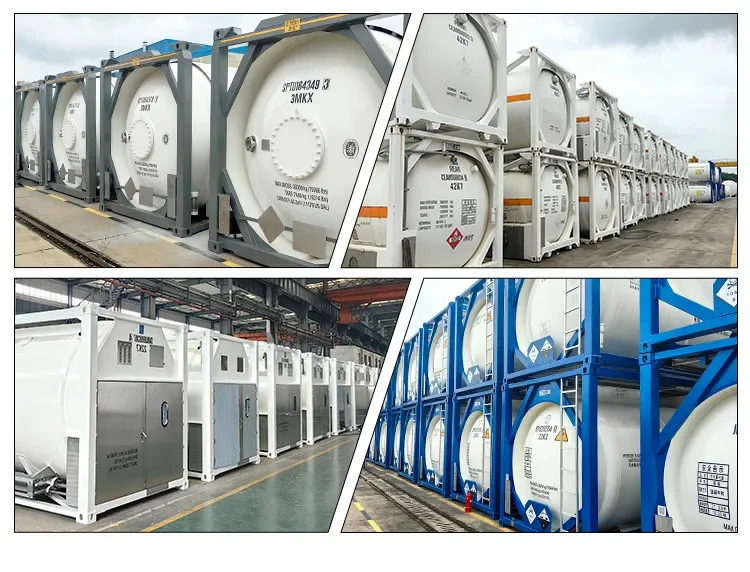

SUCCESSFUL PROJECT

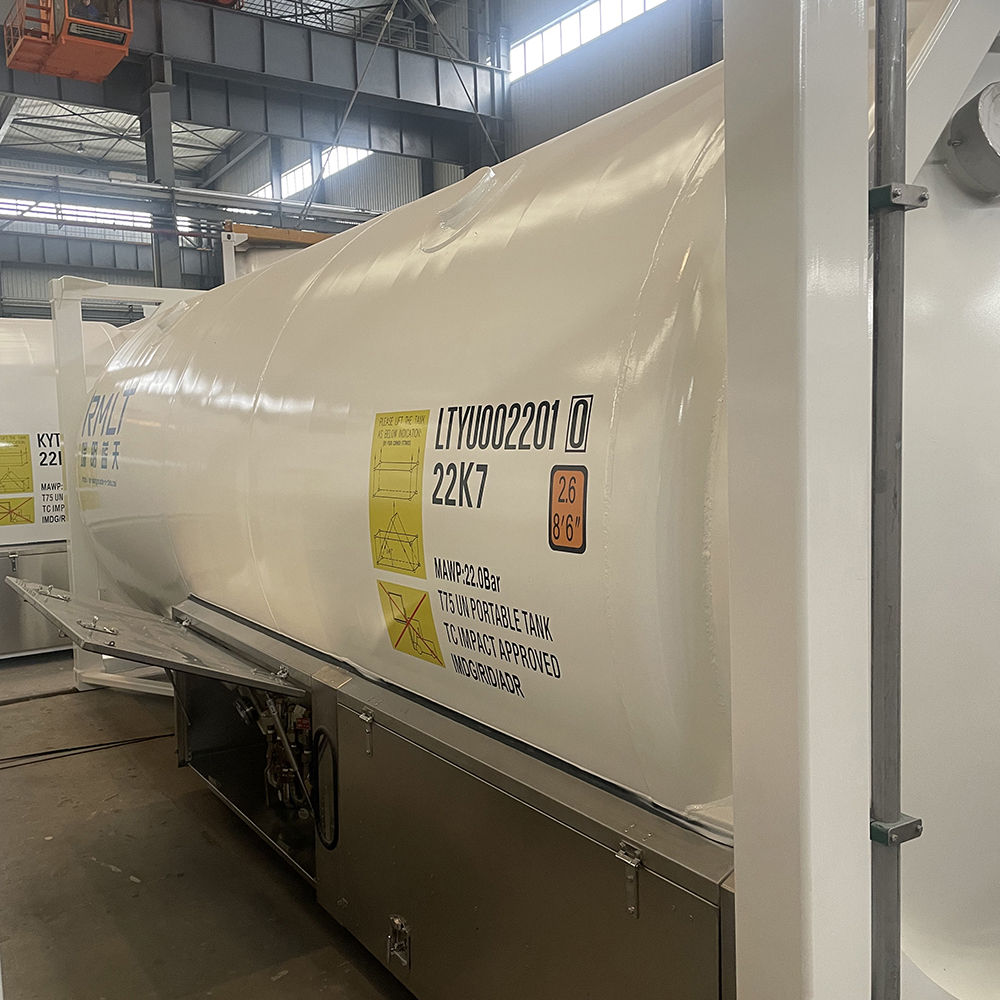

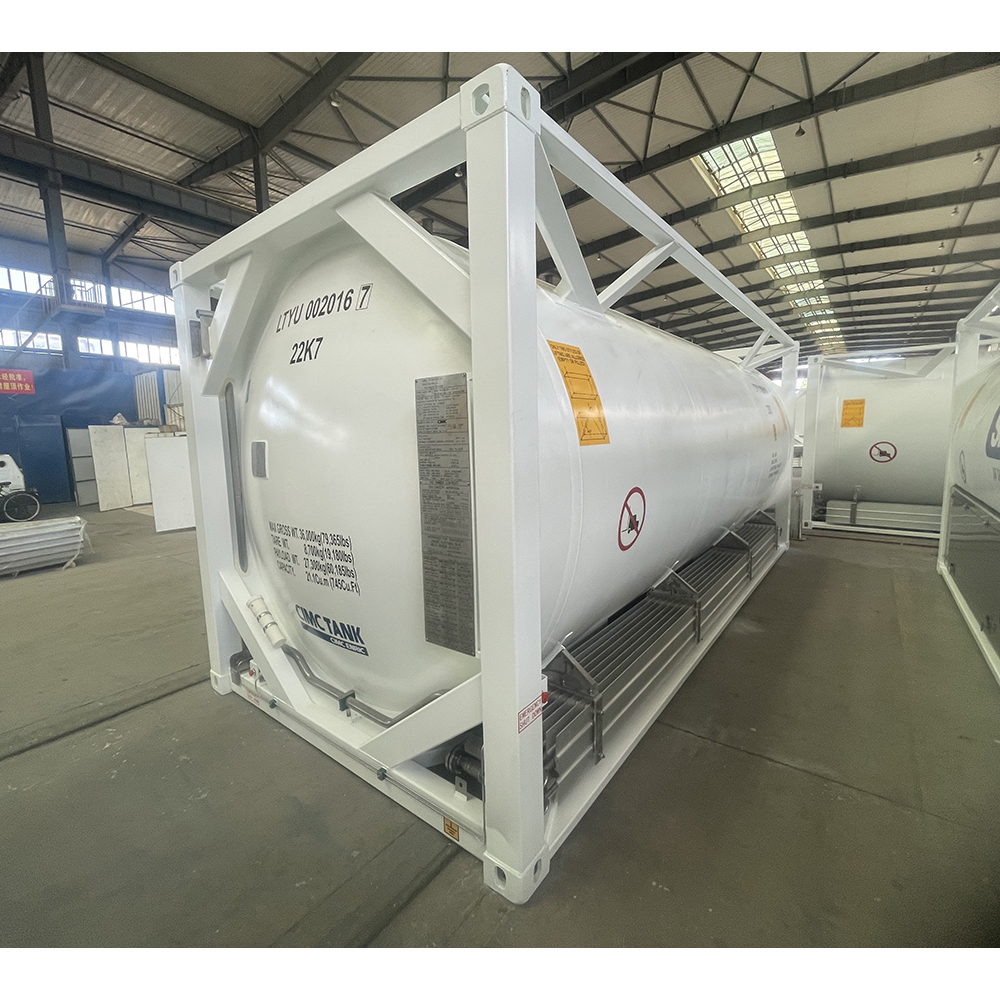

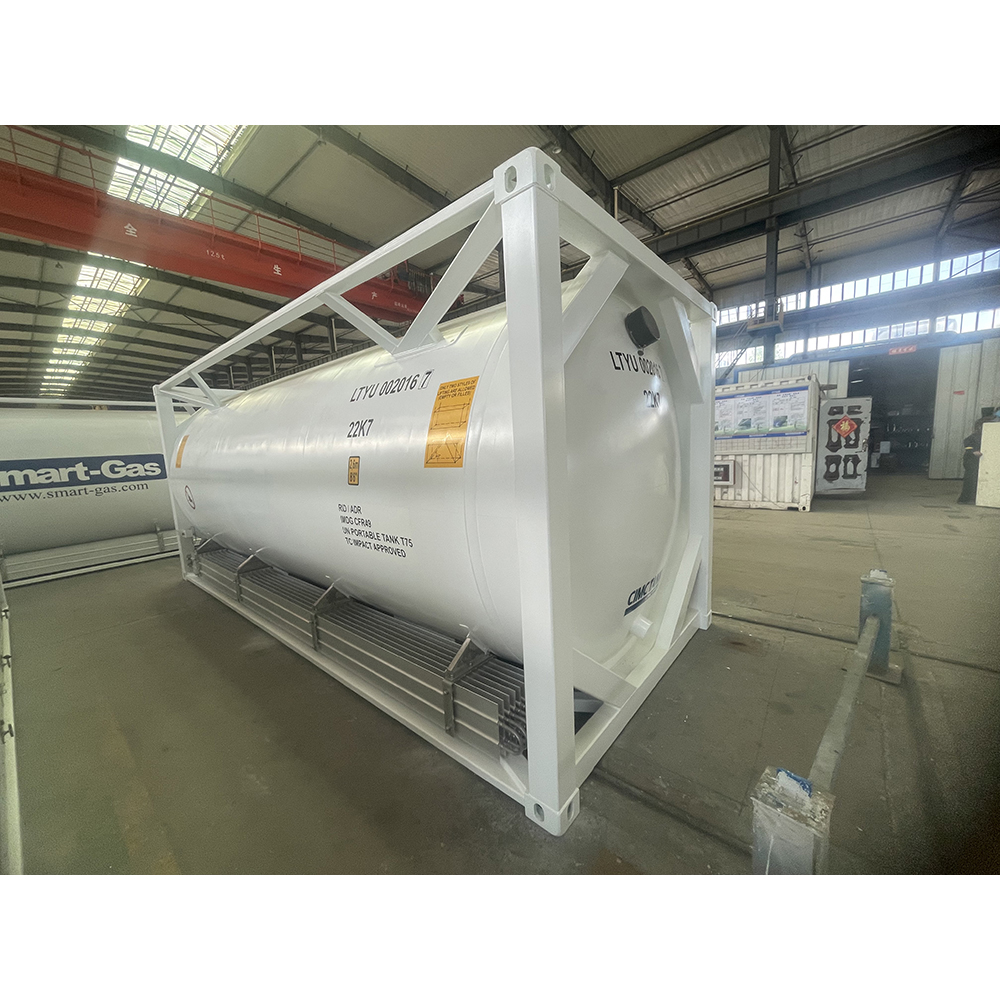

Right View

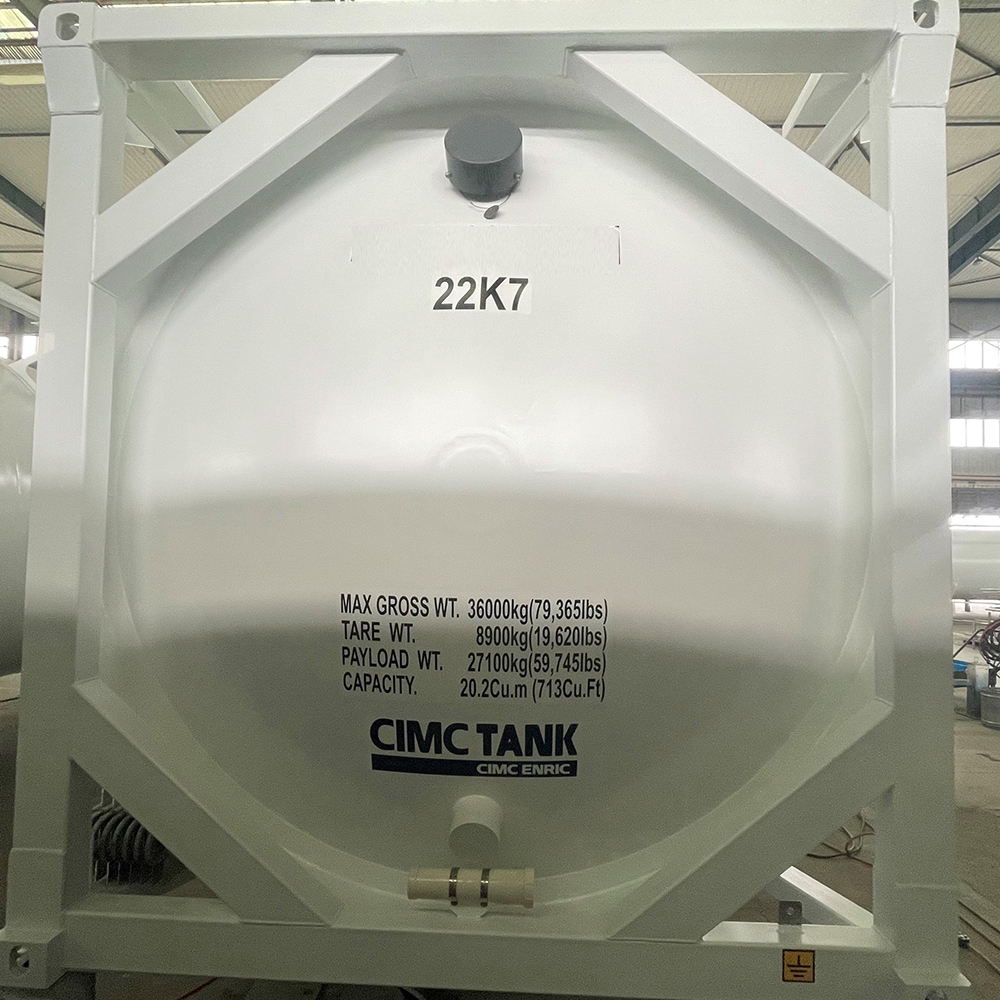

Front View
