Description

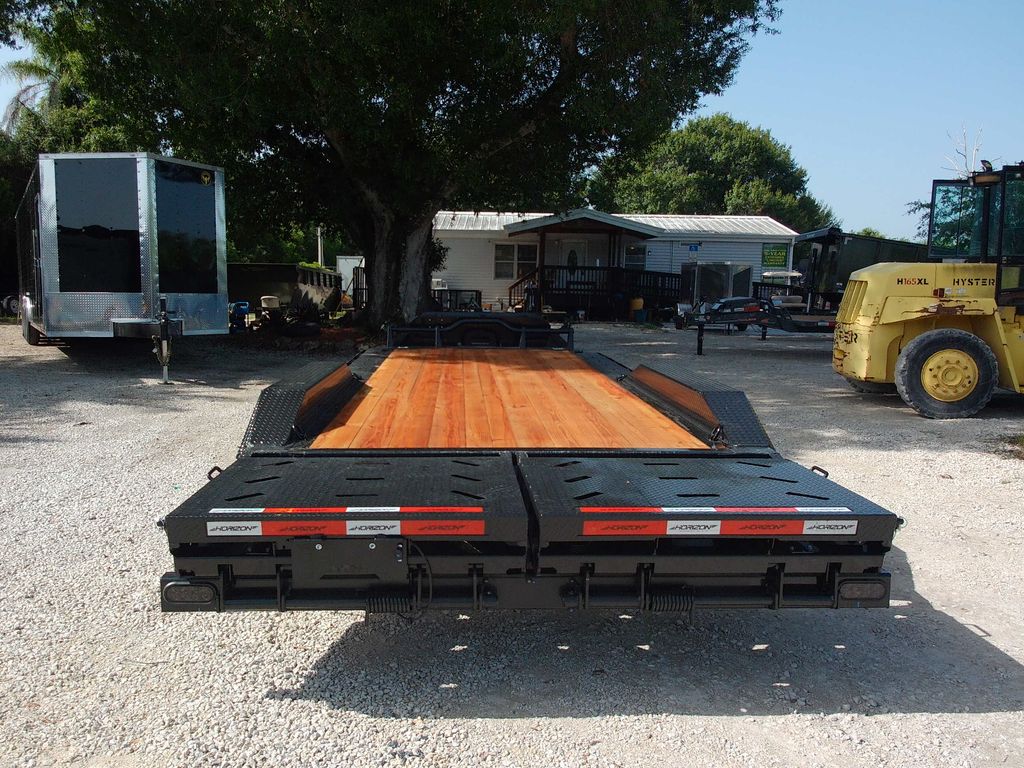

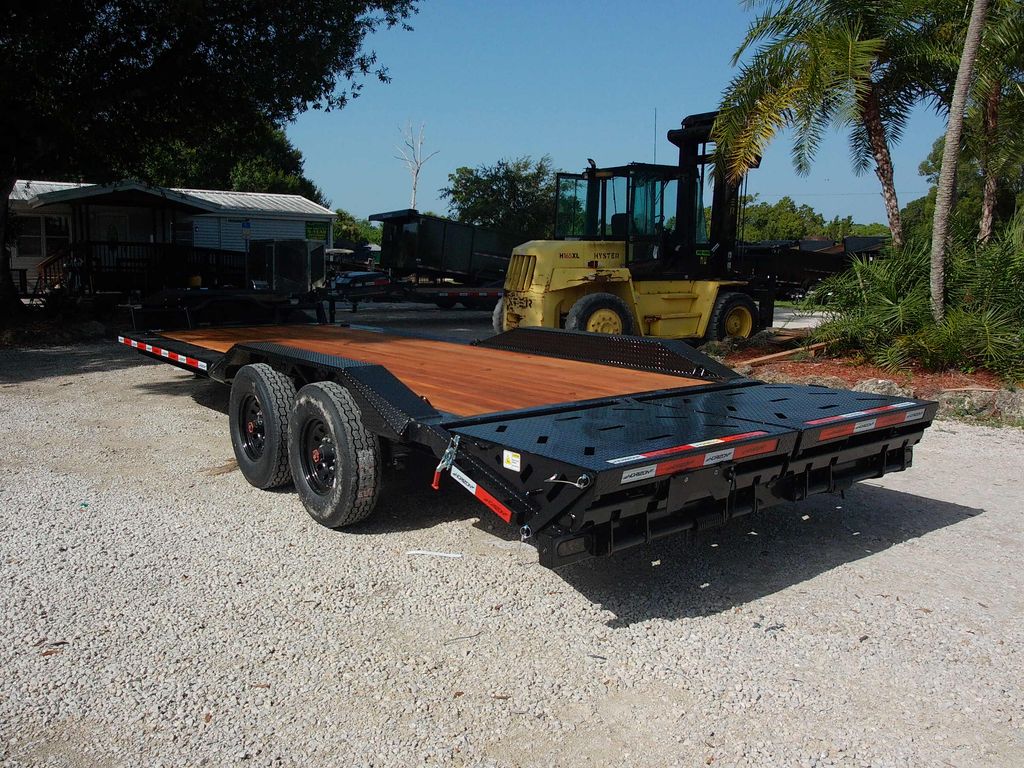

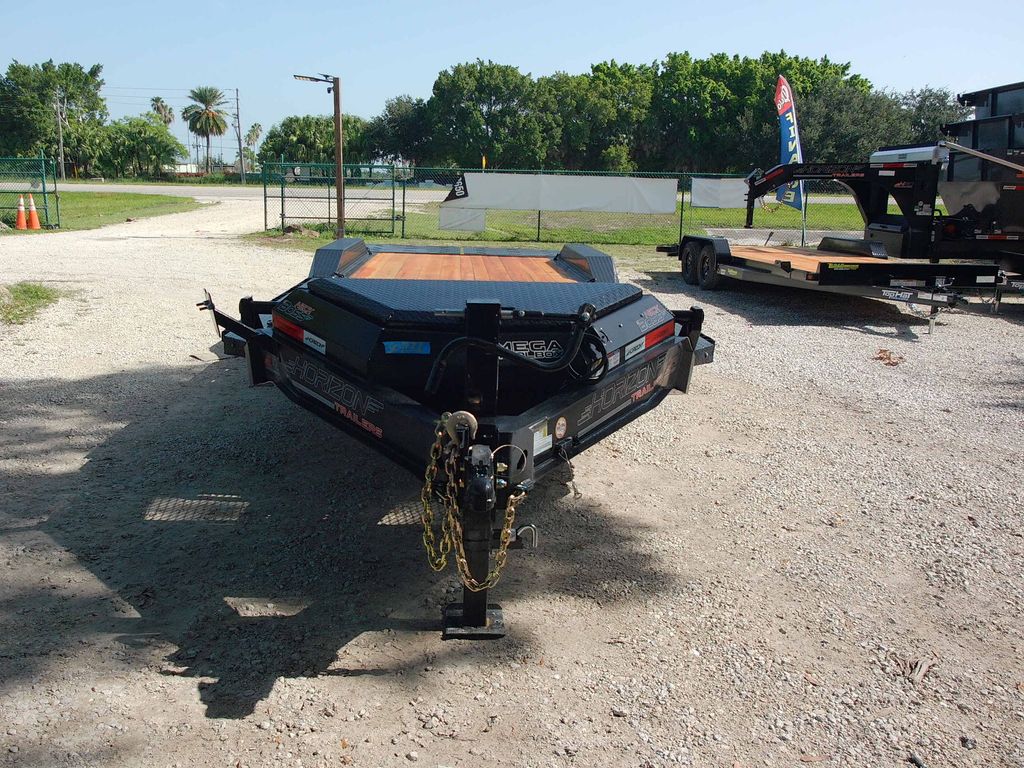

2027 Horizon 8.5×22 Equipment Trailer – 17K GVWR
Load skid steers, tractors and jobsite equipment with this Horizon equipment trailer from Tank Land Ventures. The 102-inch-wide, 22-foot steel trailer has a listed 17,000 lb GVWR and 12,800 lb payload, supported by tandem 8,000 lb axles.
An 8-inch I-beam frame forms the main structure. The 3-foot dovetail and mega ramps provide rear loading access, while a mega toolbox, winch plate, rub rail, stake-body pockets and six D-rings support equipment transport and securement. The source specifies 14-ply tires.
Detailed specifications
| Year / condition | 2027 / New |
|---|---|
| Manufacturer | Horizon |
| Stock number | 15922 |
| VIN | 3H7BT2226VR019123 |
| Model | Not specified |
| Size | 8.5 ft × 22 ft |
| Color listed | Black |
| Frame material | steel |
| GVWR | 17,000 lb |
| Payload | 12,800 lb listed |
| Empty weight | 4200 lb listed |
| Axle count | 2 |
| Axles | Two 8,000 lb axles |
| Main frame | 8 in I-beam |
| Dovetail | 3 ft |
| Ramps | Mega ramps |
| Tool storage | Mega toolbox |
| Loading preparation | Winch plate |
| Securement | Rub rail, stake-body pockets and six D-rings |
| Tires | 14-ply |
| Hitch | Bumper pull |
Tank Land Ventures
Quote stock 15922. Call +1 (512) 402-4297 or email contact@tanklandventuresllc.com for product and delivery enquiries.
